Product Detail

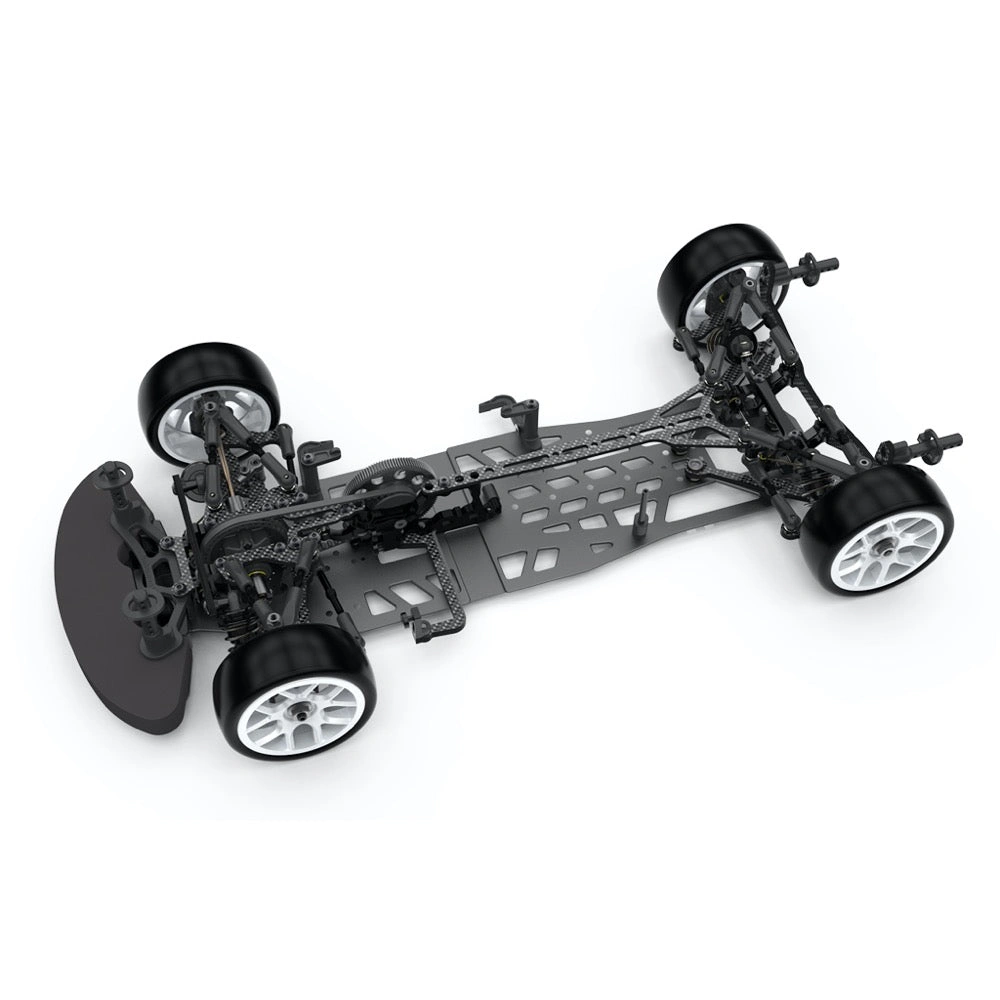

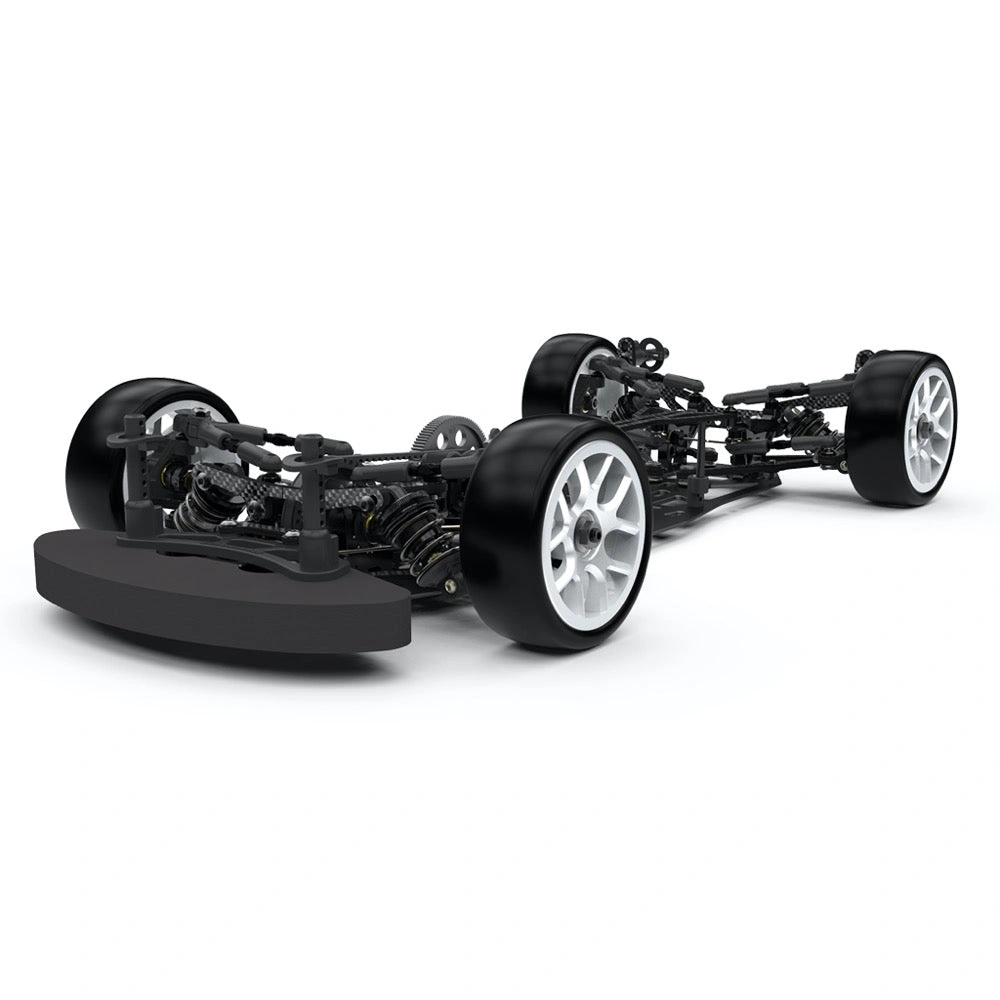

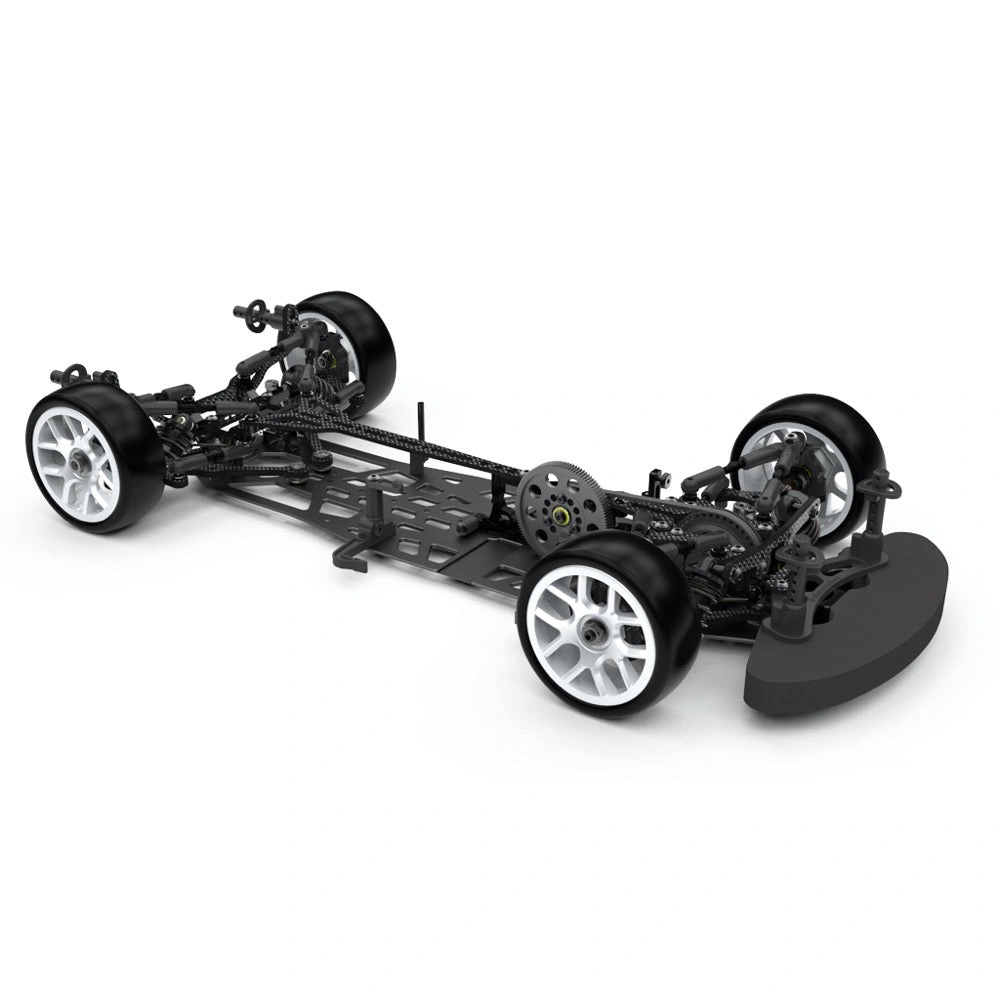

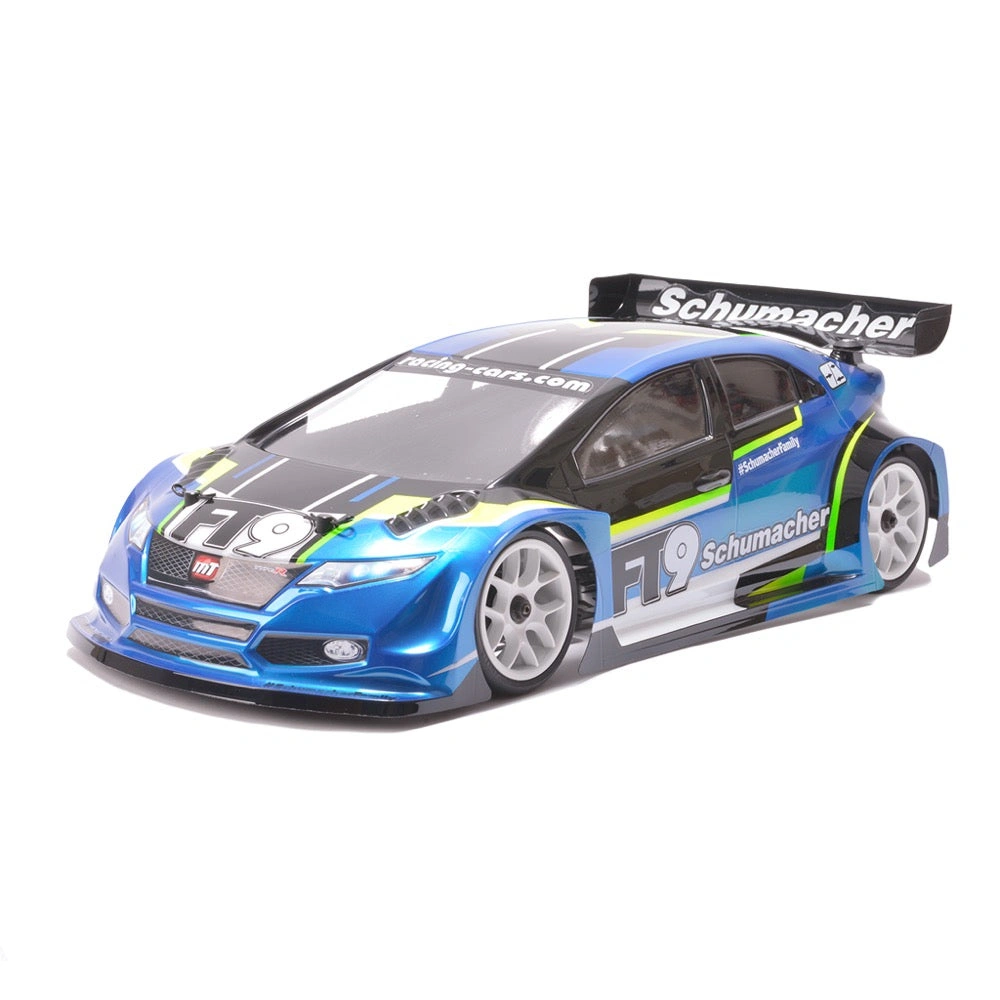

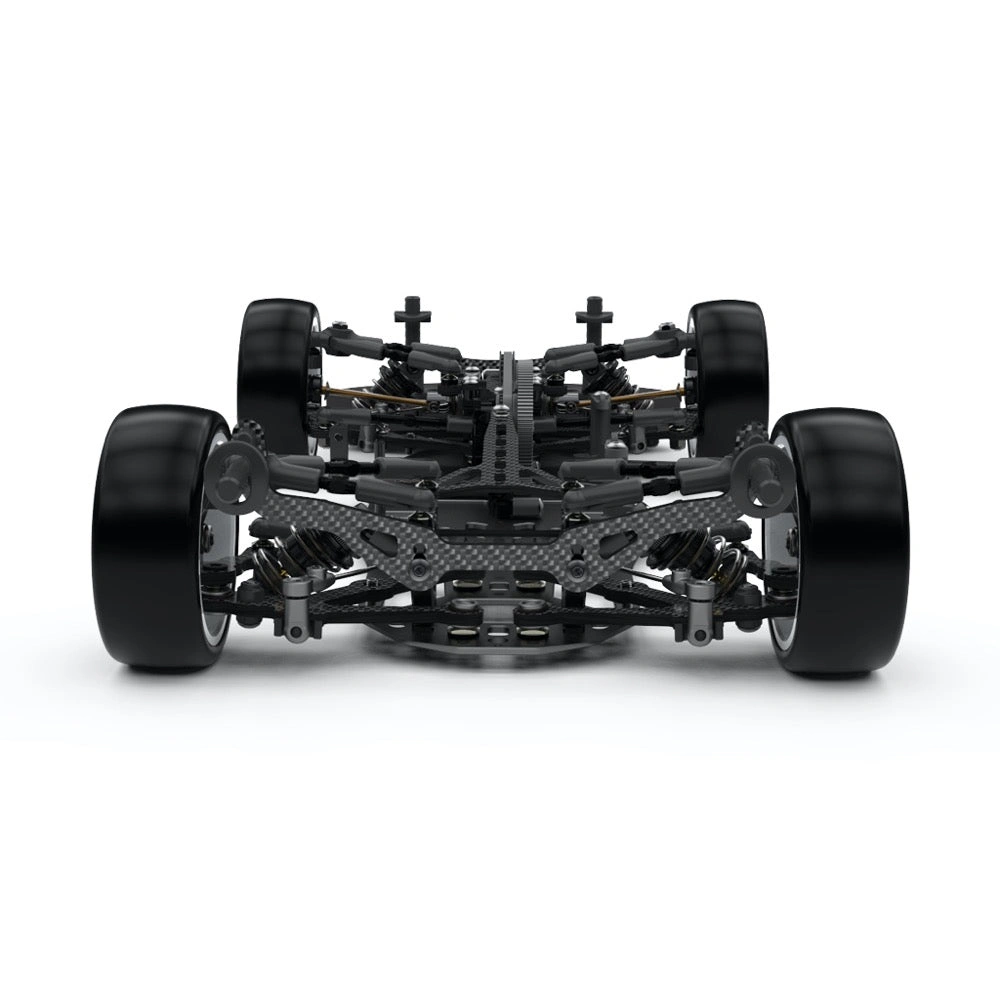

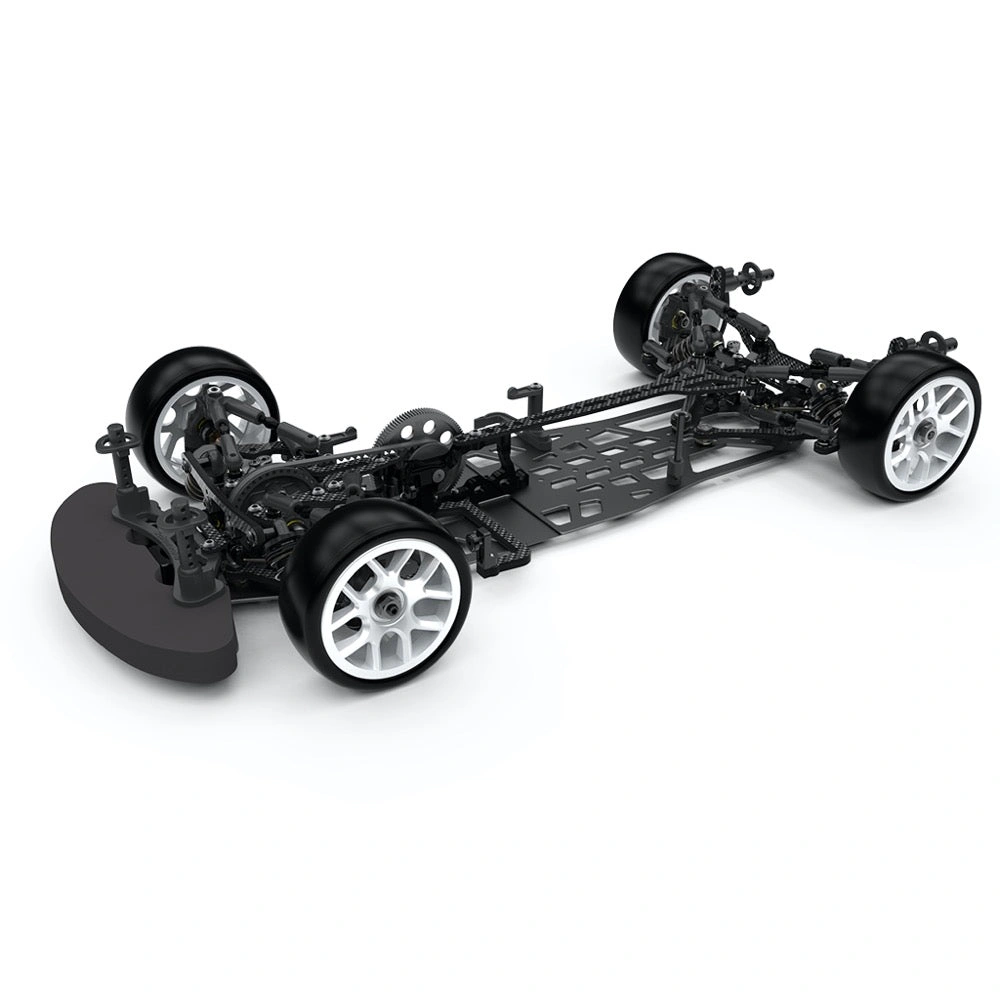

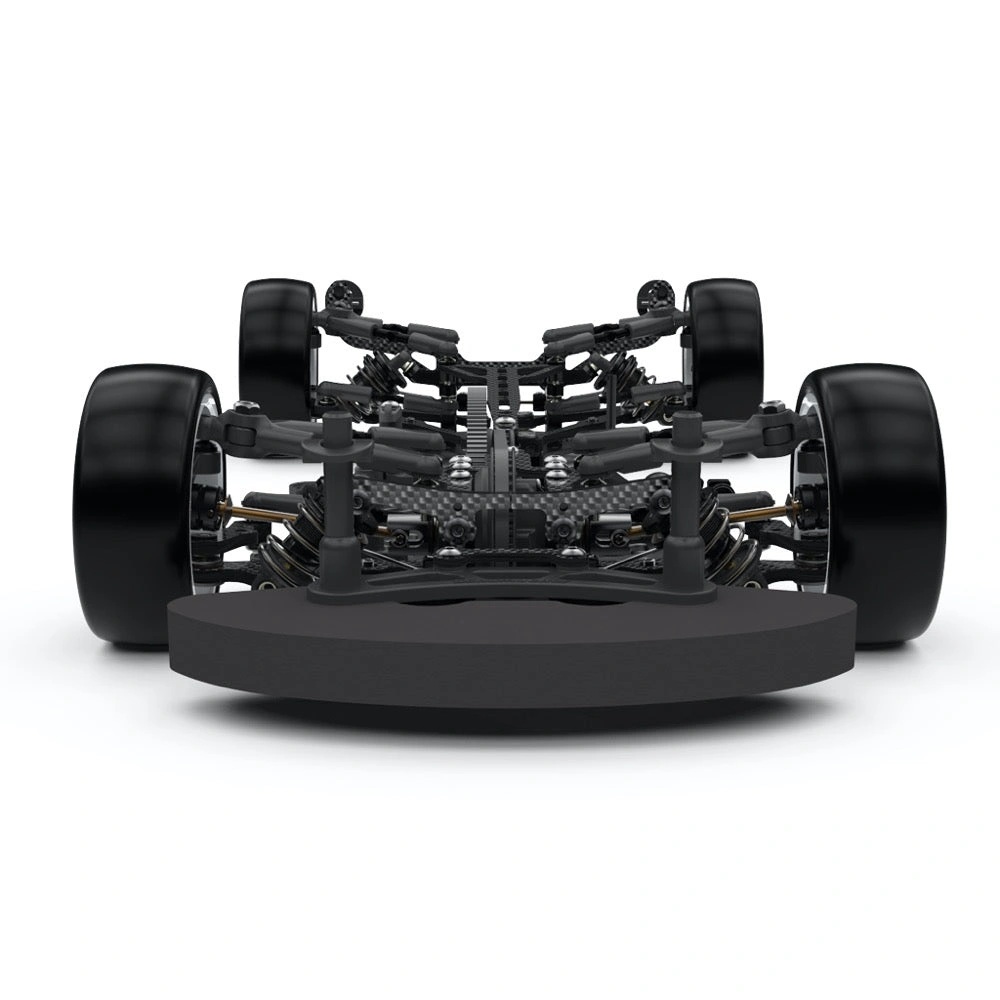

The FT9 is designed to be a winner in the close and exciting ‘Frontie’ FWD racing class.

The FT9 incorporates many features from the hugely successful Mi9 touring car, to make a superbly engineered racer.

It is fast, light weight, and agile with a super low centre of gravity.

The FT9 contains all the features and adjustments you need from a high end front wheel drive to take you to the top of the podium.

The FT9, drive from the front.

New Features

• Two Kit versions, K220 Alloy Chassis 7075-T6 or K219 Special Stiff Weave Carbon Fibre Chassis. Each offering extreme weight reductions in the rear of the car, as well as advanced flexibility characteristics.
• Front bumper design with foam bumper and black brass weight. Optional 60g (6x10g weights U8774) additional weight locations.
• Rear suspension layout with all new shock mounting design. New geometry and forward bias weight distribution.
• All new suspension geometry. Refined over countless hours by our team drivers and in house development engineers to provide maximum performance across all track conditions.
• Fully updated front transmission housing. Same on the left and right side.
• Rear Transmission housing for maximum rearward weight saving and optimum rigidity.
• Lightweight gear differential design with ultra-smooth action, improved performance and improved ease of build, especially with requirement for maximum oil capacity seen in FWD. Optional oil bleeding design included for an even easier build technique.
• Driveshaft design. All new low profile joint, joint positioning, ball bearing outputs and weight reduction provide performance improvements.
• Nano shock absorbers with total length reduction of 7.6mm. Uncompromised stroke for improved performance and lower centre of gravity.
• Front Hub carrier design. Plastic are included as standard with optional alloy hubs both providing improved wheel control and performance.
• Front Wheel hex’s with improved wheel control and easier attachment.
• Rear Alloy Wheel hex’s, lightweight, simple design with inner alloy nut fixing method offering easier wheel fitment.
• Steering arms with new mounting and adjustable ackermann included and optional crash stop locations.
• Lower wishbone design with enhanced flexibility, droop control and other improvements. The wishbones are now identical on the left and right hand side.
• Outer wishbone ball and socket for improved durability and geometry.
  Independent rear body mounting. Providing better handling performance and durability with shocks mounted separately.
• Carbon Fibre Servo mount with low centre of gravity design, along with improved mounting location.
• Compatible with Aerox AX067 LP1S servo, with direct mounting. (Wire extension required, such as KO36521).
• Front split shock mount design with twist free design and a more consistent, smooth handling characteristic.
• Lightweight centre layshaft and spur holder design.
• Lightweight Motor Mount, which includes all new motor positioning with improved pinion accessibility and built in 30mm fan mount.
• Steering radius arm assembly with new steering geometry for maximum steering with smooth characteristics.
• Split Top Deck design and integration with the motor mount.
• Aluminium upper link pivots for lightweight and lower centre of gravity included.
• Black threaded inserts. Eliminates the need for nuts.
• Bearing Eccentrics for the diff/spool with smaller diameter and new location type.
• Precision layshaft with shortened design and revised spur gear position.
• Motor Positioning with more central motor positioning .

Features

• Improved belt efficiency which can be run much looser without slipping.
• Anti roll bar design lowers centre of gravity.
• Black alloy turnbuckles used throughout.
• 20 precision ball raced bearings.
• Arrowmax supplied 110T 64dp industry standard fitting spur gear.
• Symmetrical chassis cutout offers consistent chassis flex.
• LiPo adjustment for fine tuning weight distribution.
• Rear track rod for infinite adjustment to rear toe-in. This can be tuned for the use of Active Rear Suspension.
• Aerospace carbon fibre components throughout.
• Ultra low centre of gravity.
• Double wishbone suspension for increased suspension rigidity, and reduced play.
• Durable and more efficient drive train with larger pulleys 22:40.
• Fully adjustable, suspension geometry, wheelbase, castor, camber, roll centre, ackermann, droop, anti-dive, anti-
  squat, front and rear toe in/out, ride height and much more.
• Option Parts available to fine tune to all track conditions.
• LiPo retention mouldings. No tape required.

Requires

• 2 Channel Radio
• Motor
• Servo (Low Profile)
• Electric Speed Control
• Wheels & Tyres
• 2S Lipo Battery, stick or shorty
• Bodyshell
• Motor Pinion 64dp
