Product Detail

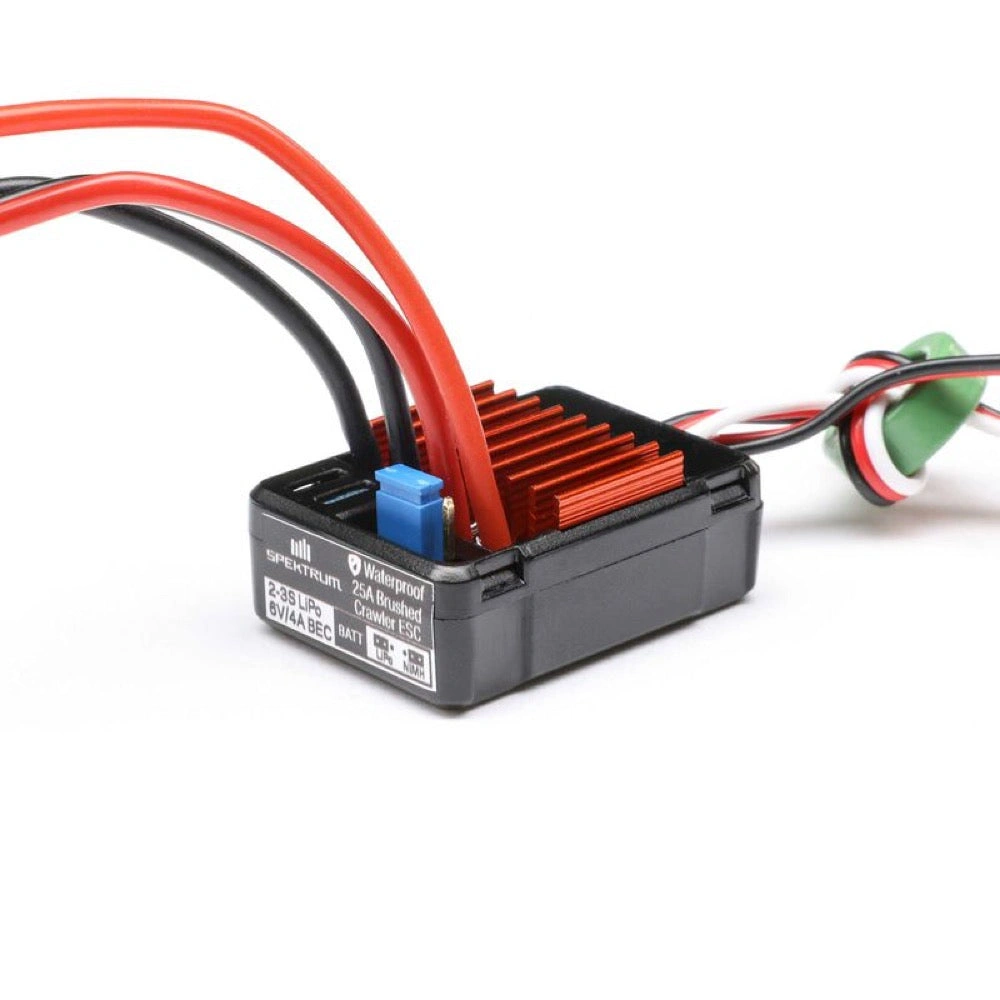

Feature-packed Firma™ Brushed ESCs deliver power and intelligence all-in-one, with no additional modules or links required. This waterproof, 25A Brushed ESC drives your 1/16-1/18th scale crawler/scaler through almost any condition imaginable, with explosive acceleration and ultra-smooth performance — while feeding real-time telemetry straight to your Spektrum™ transmitter!

Features

• Ideal for 2WD and 4WD 1/16-1/18th scale crawlers/scalers running on 2S - 3S Lipo setups
• High current adjustable BEC (6v @ 4 Amps)
• Waterproof (see instructions for details)
• Multi-point protection
• Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
• Compact for easy installation in most applications
• Ready to install — no soldering required
• Rugged plastic case
• Aluminum heat sink for high efficiency
• High heat resistant IC™ connector, backward compatible with EC™ connectors
• Limited 1-year warranty

Specification

• Amperage: 25A
• Battery Connector: IC2
• BEC Continous Current: 4A (Switch mode)
• BEC Voltage: 6V
• Dimensions: 34.0 x 24.0 x 14.0 (mm)
• Input Voltage: 2-3S LiPo and 5-9 Cell NiMH
• Maximum Burst Current: 100A
• Motor Output Lead: 4mm Female Motor Bullets
• Motor Type: Brushed
• Overload Protection: Yes

Contents

• (1) Spektrum™ Firma™ 25A Brushed ESC
• (1) Product Manual

Requires

• (1) Compatible Surface Receiver
• (1) Compatible 2S-3S LiPo Battery with IC2 Connector
• (1) Compatible Transmitter
